MX7000 Wiring Questions

[Nick7071]

Hi everyone,

Working on my first bar which was a torn apart parts bar that’s now fully loaded with sweeps, 6-Head Arrowstik, etc. I ran into a few issues when I was wiring a few things though.

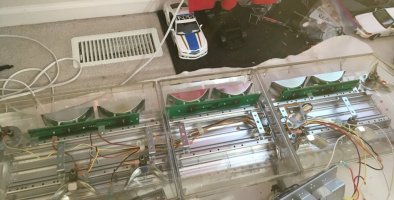

My first is for the flashers, I have a 710 flasher hooked up to 4 flasher modules in the front of the bar (see pictures) and I wanted to utilize the steady burn feature. The manual says to positively switch terminal F while power is applied to activate it through the SW300 switch box I have but every time I flip the switch, it blows the fuse. I’m not sure how else you would wire this but from what I understand from the diagram.

Second, how do I wire the Arrowstik to a basic code 3 Arrowstik controller? I have the newer style modules that require some kind of special connectors and I’m not sure where to get the wiring harness and how to wire it to the controller. I have attached pictures of before and after below. Thanks!



[MtnMan]

For the 710 flasher, terminal A should always be connected to +12V (20A fused) and terminal H is ground. Terminal E activates steady burn, F is pause (off). If that's what your doing and it's still blowing fuses, it sounds like the flasher is defective,

Post a pic of the Arrowstick connectors and I can give you more advice on that.



[Nick7071]

Actually the manual I pulled from their website says vice-versa. F for steady E for pause. http://www.code3pse.com/public/media/inst_710_711_Flasher_T01973_rev_10.pdf

I found a picture of the Arrowstik while I was rebuilding the bar, if you zoom up on the top of the circuit board, you can see the pin connectors, I’ll take better ones tomorrow



[Nick7071]

Actually the manual I pulled from their website says vice-versa. F for steady E for pause. http://www.code3pse.com/public/media/inst_710_711_Flasher_T01973_rev_10.pdf

I found a picture of the Arrowstik while I was rebuilding the bar, if you zoom up on the top of the circuit board, you can see the pin connectors, I’ll take better ones tomorrow



[shues]

Those connectors are standard for all but the very earliest MX7000 ArrowStik. I just sent the last bunch of MX7000 ArrowStik harnesses that I had to @EHFD_Tower_751. Perhaps he'll come off of one.



[EHFD_Tower_751]

I actually do have an extra arrowstick cintroller that would be perfect for them, i'd have to hunt for it though when i get out of work
