Diagram needed for Star/SVP LED flasher

[ncranchero]

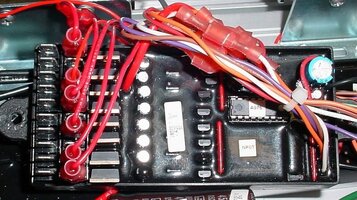

Doing some armchair engineering and can't find a schematic for the Star LDF398 (S8070-285-1) flasher. Not one on Star's website. Probably self explanatory but I'd like to find a printed copy. Anyone have or can point me to the instruction manual for this flasher?



[rwo978]

I thought I had the instructions, but can't find them saved in my email. Had the same problem with a similar flasher. I just emailed their service email and they fwd the PDF to me.



[ncranchero]

Thanks, I got it semi- figured out from trial and error. Still like to have them if you find them. I may send for them myself.


Thanks again!



[ncranchero]

I emailed Star Customer Service yesterday to request an instruction sheet for this flasher. I just received it from them, 7:30 Monday morning. :shock: That's pretty awesome service I'd say! Ryan or anyone who'd like a copy let me know.



[robert911]

Anybody still have the wiring diagram for this flasher? Thanks.
