Looking to get a Whelen 4500 series up and running for home use

[casualmaleXL]

Howdy,

I have this nice Whelen 4500-series (maybe 5000-series) build-a-bar lightbar I won at auction a few years back. After sitting in the garage for a few years I'd like to get it running. I'm a newbie when it comes to lightbars but I have hobbyist electric skills (soldering, splicing, multimeter-ing).

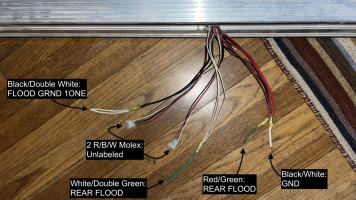

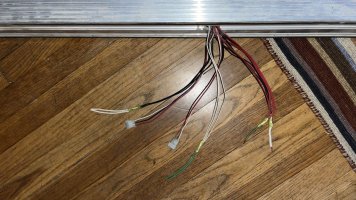

Looking for some pointers on how to get this thing running. I've attatched a picture of the spliced wires coming out the back, some of them are labelled but I'm not sure how to power them. Do I need a control box? Can I hook it up to a transformer? Looking for any and all technical manuals/tips/pointers/anecdotes/etc.

I enjoy hosting gatherings and this lightbar would make for some cool functional decor.

Thanks in advance for any help you can offer.

4500 series brochure



[shues]

The 4500 Super AdvantEdge has endcaps that wrap around into end lenses, and it has lens dividers that are held on with screws. This is not a 4500 bar.



[tsquale]

This thread spells out wiring 12v lights to work on 120v household current in many ways: https://elightbars.org/forums/threads/running-12v-dc-equipment-on-120v-ac-indoors.7483/



[casualmaleXL]

This thread spells out wiring 12v lights to work on 120v household current in many ways: https://elightbars.org/forums/threads/running-12v-dc-equipment-on-120v-ac-indoors.7483/

Exactly what I was looking for, thank you. Got it running for the first time in probably 10+ years with a 600W PC power supply I had sitting around. Next is bulbs and a lens polishing.

I noticed the halogen strobes are unresponsive… is that what those 3-pin molex connectors are for?



[casualmaleXL]

The 4500 Super AdvantEdge has endcaps that wrap around into end lenses, and it has lens dividers that are held on with screws. This is not a 4500 bar.

Any idea what it could be then?



[C17LVFD]

You will need a strobe power supply for the three strobe lights. If you can find one the Whelen isp94 was always a favorite of mine and quite bright.

You’ll need some strobe cable extensions and a place to mount the PS, but would add another layer of affect at a party.

If you’ve got anyone prone to seizures at your party, may wanna hold off running the bar as all the flashes particularly up close can induce seizures.

Seth
