2009 Dodge Ram 5500. Brush truck. All whelen lights. We did the Electric, The plumbling, and the pump. This truck is what really got the ball rolling on our new switch panel system. I wish we had it when we built this truck, but for now, it is left with a Whelen CenCom:).


nwaman223 said:
yea no kidding where can i get my hand on one of those

you can go to www.shopwiredhdh.com and get them there. I also put up a discount for Elightbar Members.


You must use store checkout to use the code, not paypal. We are working on that, but it won't be available for a few more weeks.


Anyway, enter the code "elightbars" and it will give you the price of $325 for the unit. Make sure you read the specs for it so you know what it will do.


Thanks!

74FirefighterEMT said:
i take it you would need to wire the switch panel to relays in order to run your warning lights, aux lights and such since the buttons are only rated at 2.5amps correct?

PM sent.


To answer, Yes, unless you have a lightbar that only requires triggers, like the whelen strobes or and LED bar, or if you are running strobe power supplies, they only require triggers too.

WIRED HDH said:
really? where did you get the picture? Sweet man!

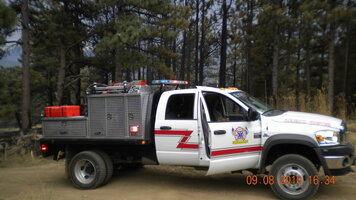

here is some pictures the department sent me when it was deployed to the FourMile fire In Colorado.







i googled it than i have an imaging program on my pc and enhanced it. lol

This is the Chiefs truck For Milliken Fire Departement in Colorado. Nice quick clean installation on a budget.


Whelen Vertex in the rear, Whelen LIN4 in the grill, Whelen Justice WeCan lightbar with arrowstick. controlled by Whelen Cencom.


We made a custom bracket for the whelen cencom to keep the cab as uncluttered as possible.


All exterior connections made using Weatherpack connections.

























So we also do Electrical troubleshooting, repair, and installations on RV's. This is a tv setup we put in for a customer who wanted to the tv to be come out and get taller... it is on electric actuators and you hit 1 switch to bring it out and up, and one to bring it in and down. These are before and after pictures.


Pretty neat, kinda rediculous, tons of fun to build! Make sure you watch the video at the end...


























That TV in the RV is pretty nice, also that switch panel looks desirable in convert type installations.. I love how you mounted it 100% concealed in that cup holder in one of the videos.. really nice.


All the installs look awesome, keep it up!
