Pinout for DATA-E cable connecting Futurecom SLIM module to Code3 Z3 siren

Astro_Man

New Member
Nov 27, 2023
2
0
Canada
Good Day,

I’m trying to connect my Code3 Z3 siren to a Futurecom SLIM module Siren-B port so that I can control the Z3 via my APX radio through an O9 control head. The SLIM module connection is an RJ11 4 wire connection and the Z3 is an RJ45 connection. Does anyone know the pinout for this cable so I can make one? It’s not a straight RJ11 to RJ45 phone cable. I tried that already without any success. Any help is appreciated. Thanks


Attachments

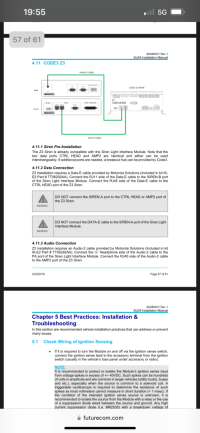

  • IMG_8526.png
    191.7 KB · Views: 3
Astro_Man,

Did you ever get this working? I'm considering picking up a SLIM to try and do the same thing, but obviously can't find any of the cables.

Doug
