Recently purchased a Whelen from a local FF. All blue, takedowns/alleys with four strobes per side and four little halogen steady-burns in the corners.

I managed to figure out the wiring, but I can't seem to get the center strobes or back halogen to work.
The strobe supply seems to not want to power them. I plugged the strobes into the corner strobe's connector to test them, and they do work. However, when plugged into the supply, they do not come on.

The supply also generates a noise like a car alarm, a high chirping. I think this is from age, (One supply's production date is marked as 2/87, corners/strobes are 1/85 & 2/85)

Is this an issue with the supplies? Would swapping in a newer supply solve both issues?
The model on the bottom label is 9248
The marked supply's model is 01-0266094-00



[tsquale]

Based on the noise you are describing and that you tested the strobes on another supply, it sure sounds like that supply is the issue. Swapping it would solve the strobes. The halogens would be on a separate flasher.



[ImpulseBuy]

Thanks for the quick response. Do you know what type I'd need? The ones I've seen on ebay have eight pin connectors, where as the current ones use six pin.



[ImpulseBuy]

Update: One corner bulb fixed by repositioning, other one is blown.

Determined that one supply is totally dead, while the other only is on it's way out.

Still no idea on which supply to buy.



[tsquale]

Does the dead supply have any decals on it? Most Whelen ones do have a label indicating what it is.



[ImpulseBuy]

No markings other than a sharpie'd-on manufacture date, voltage rating and "441135" next to the input

Update: "Whelen 65857C" on the board.



[jdh]

Pictures would help. The original PS that went into the 1st generation of that bar had no markings.



[ImpulseBuy]

Dead supply:

http://imgur.com/yYSgtX9

Here is the almost dead supply

http://imgur.com/KV6VVWK

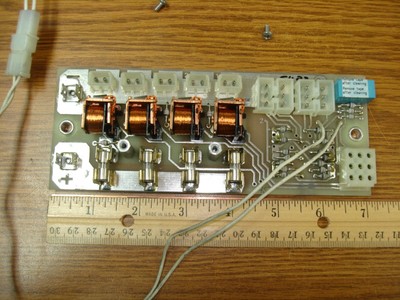

The board that they plug into is of this style:

https://i.ebayimg.com/00/s/MTIwMFgxNjAw/z/~HIAAOSw0BVehOvP/$_1.JPG

I haven't found any supplies that look like, or have the same connectors as them
Would I be able to buy an SL6/EB6 and change the plug out?



[Nolines]

You are definitely looking at the original power supplies for the edge bars, back when they were fixable now a day's covered with that garbage you can't do anything but replace them but have faster different patterns.



[RS485]

https://www.whelen.com/install/132/13216.pdf may offer some help on how to substitute an EB6 here. You may have to find or create some cross-connectors though (shown on page 7).

Those are pretty nifty power supplies you have though



[MtnMan]

They may be repairable. Msg me if you’re interested.



[Nolines]

Wait what else do you repair Mtnman????



[MtnMan]

Wait what else do you repair Mtnman????

Broken hearts, shattered dreams... and I'm willing to risk electrocution on an occasional strobe PS. Most of them aren't worth repairing, but these look old enough to be interesting.



[Nolines]

I'm just asking cause I have a dashmiser that needs repairing.



[jdh]

I have 2 of these supplys that are acting stupid. Maybe you could help. I likes the slow double flash of them.
Also, I think that is the second generation of the bar (when they started using plastic holder and the start of the "J" tubes). The 1st had all of the lamp holders metal and had the "V" tubes in the outer corners.
Another thing I remember, it had 3 modes. All front (which flashed the front 4 strobe heads), 360° mode (which activated the corner strobes only), and rear (which activated the 4 rear strobes).



[ImpulseBuy]

I was able to get an EB6 wired in to the bar. If anyone wants the old supplies, let me know. Thanks for the help, ya'll!
